Hi,
Another thread on gamma area maps generation.
This time I encountered a very weird case where the gamma area map has not been fully generated over the MGRS tile.
Here are the key info to reproduce the issue:
- MGRS tile: 30UYU
- start / end: 2024-12-20 / 2024-12/21
- relative orbit: 132 (ascending)
Here are:
-
my config.cfg (1.2 KB)
-
the log corresponding to this process
gamma_issue_log.txt (765.1 KB)
I used s1tiling docker image 1.2.0 and 1.4.2rc1 both leading to the same output.

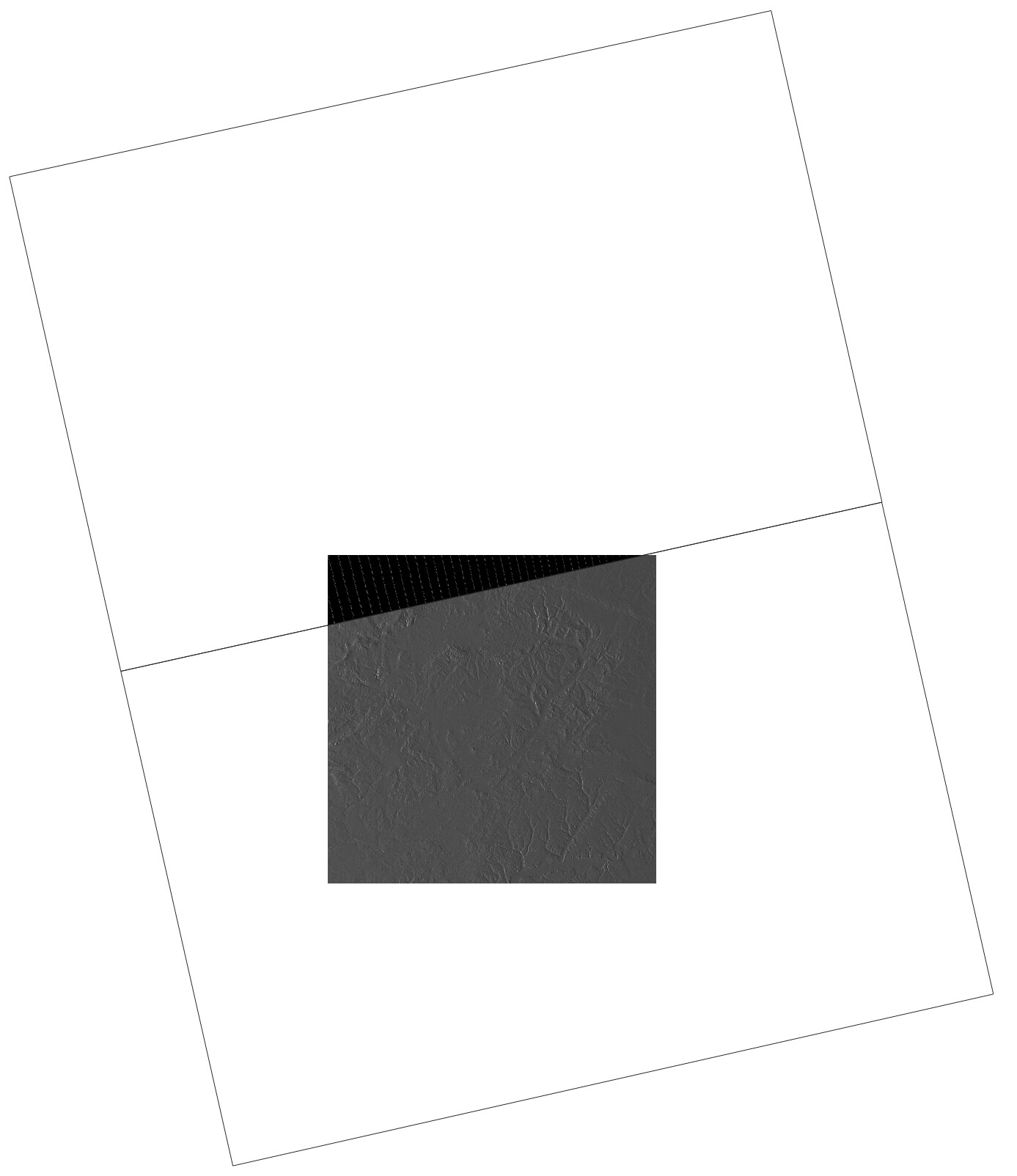

The following screenshot shows the missing part of the gamma area map:
(granule on bottom: S1A_IW_GRDH_1SDV_20241220T174852_20241220T174917_057079_070420_FC0F, granule on top: S1A_IW_GRDH_1SDV_20241220T174917_20241220T174942_057079_070420_AC6D, )

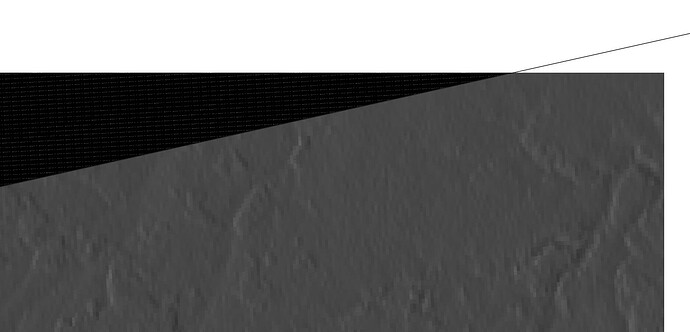

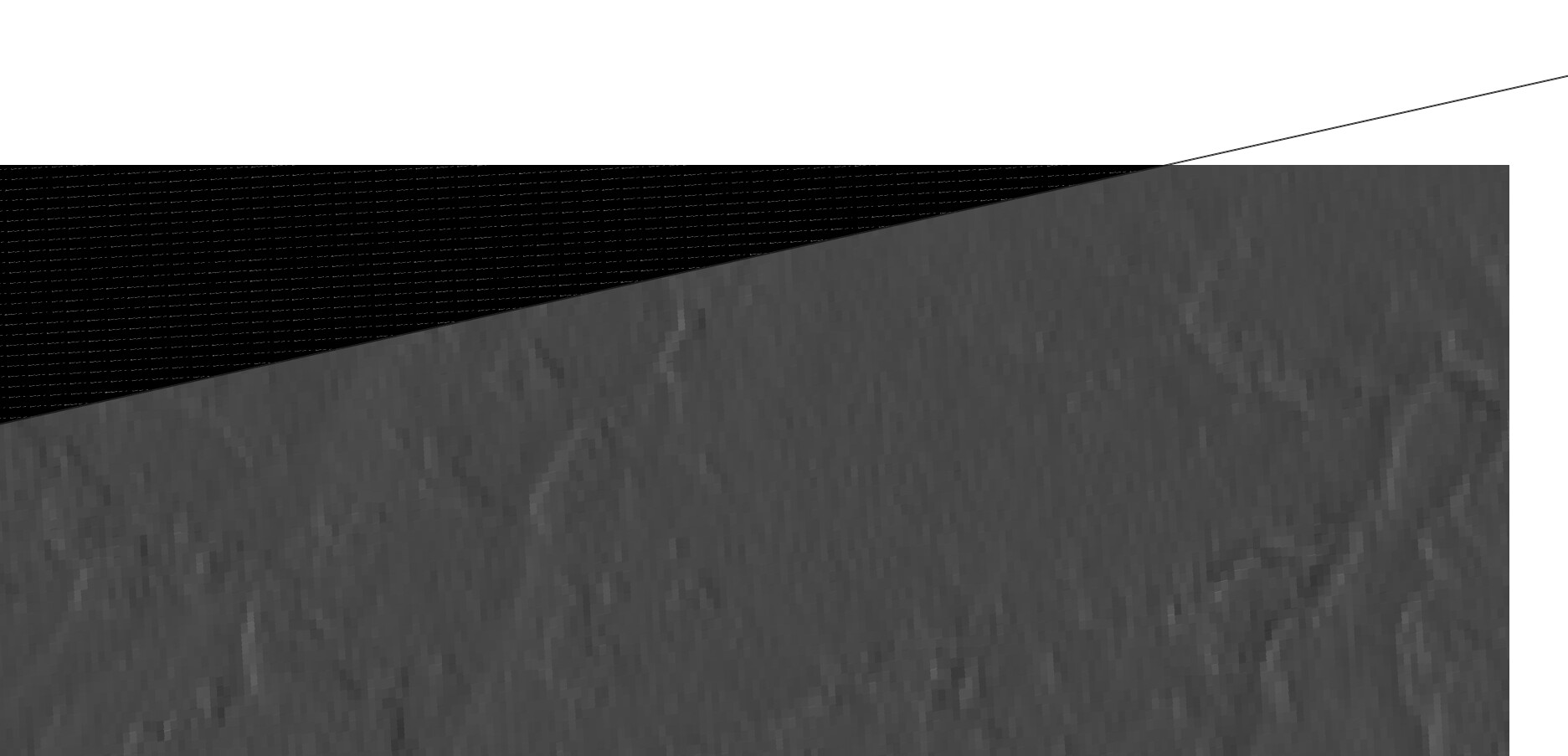

Zoom on the top-right corner of the image:
I looked in the temporary generated files and looked at the gamma area map generated for the two granules.

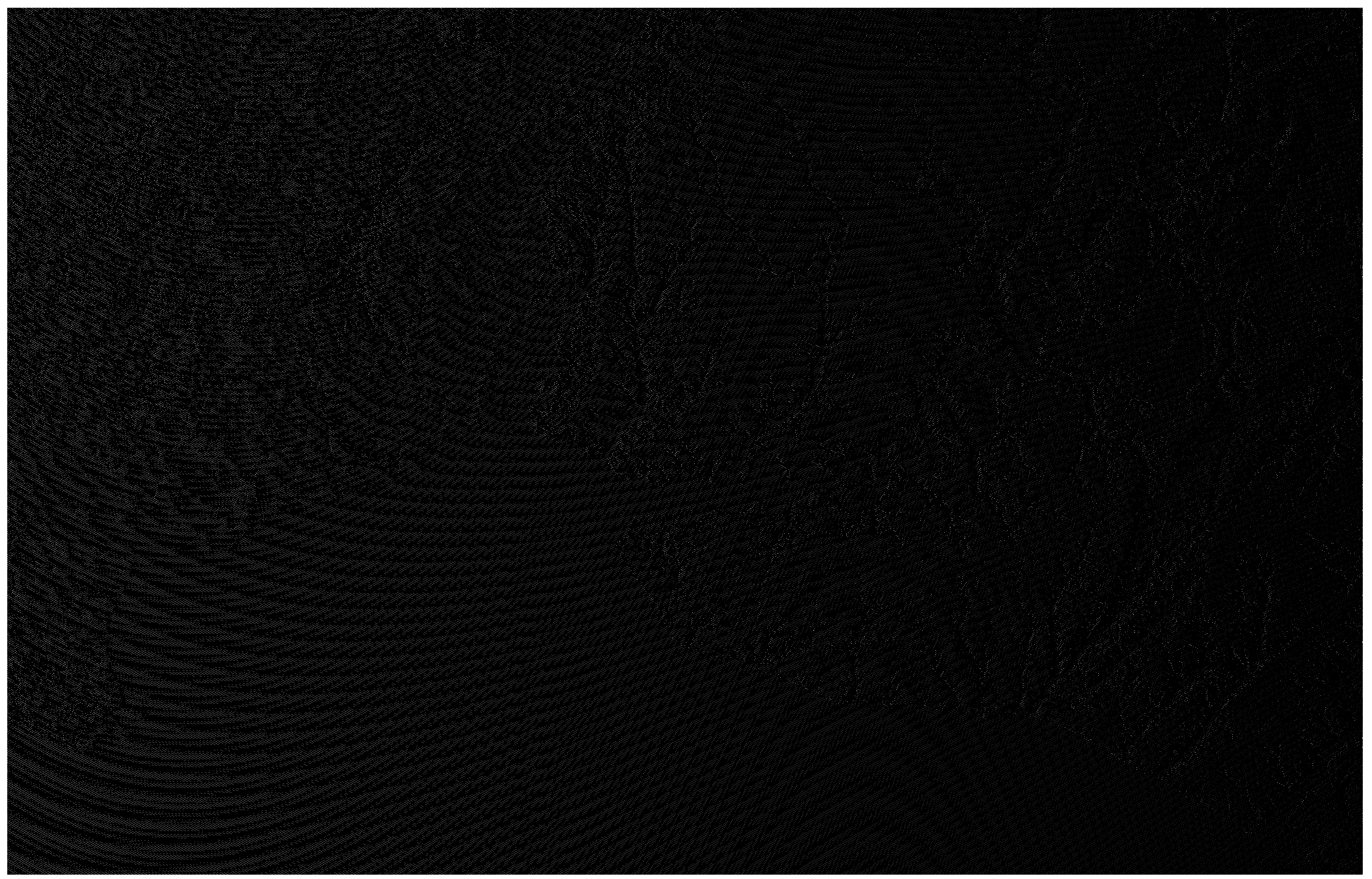

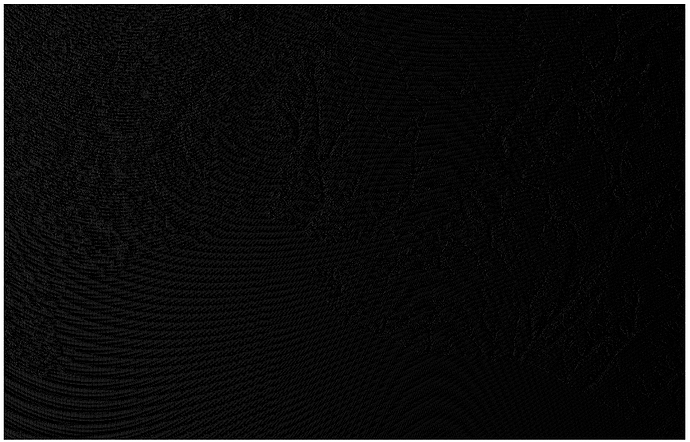

S1A_IW_GRDH_1SDV_20241220T174852_20241220T174917_057079_070420_FC0F (granule on bottom):

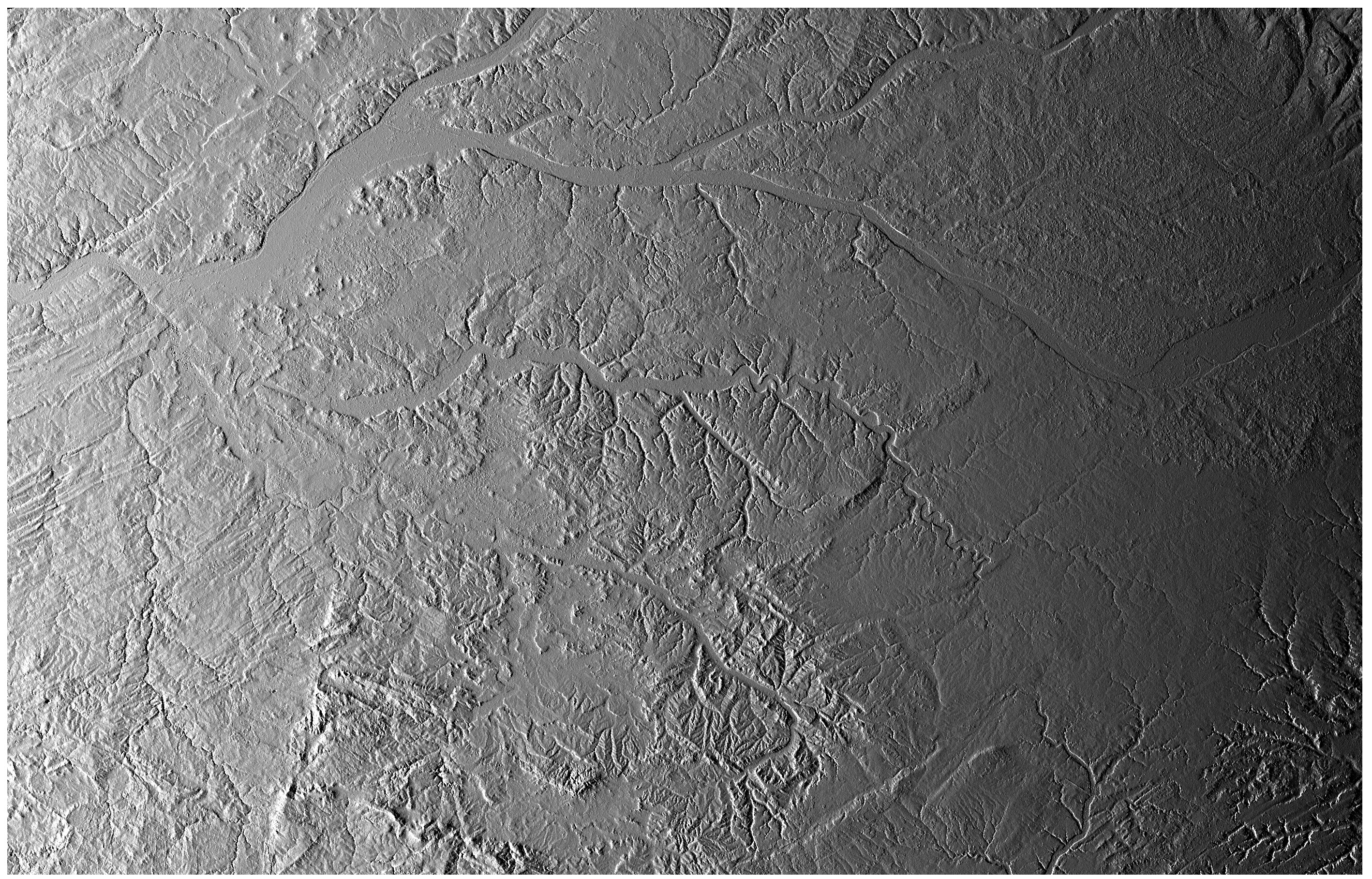

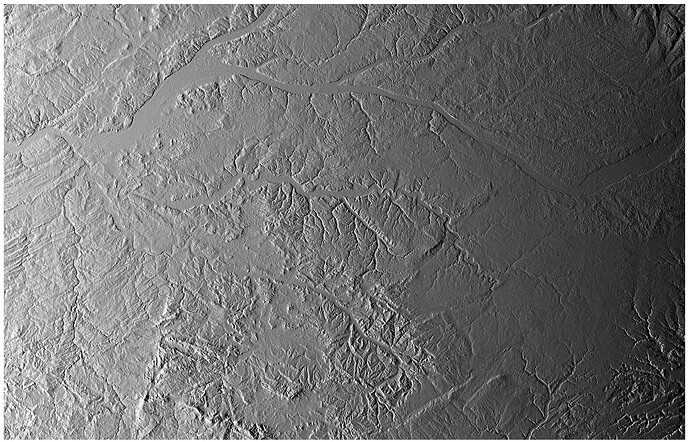

S1A_IW_GRDH_1SDV_20241220T174917_20241220T174942_057079_070420_AC6D (granule on top):
So I suspect that there is something wrong with this.
Do you have any clue what could be the cause? I really don’t know if this is linked to the other topic I opened a few days ago (on visible gamma area image patterns in abrupt terrain).
S1Tiling report tells 0 computations errors. 0 search failures. 0 download failures. 0 download timeouts.
Many thanks!
Rémi
